Who should use this guideThis guide is intended for merchants who:
  • Use Payrails as a payment orchestrator
  • Use Network International (N-Genius Online) for card and wallet processing
  • Have access to the N-Genius portal

​
Create a Network International integration in Payrails

  1. Log in to the Payrails portal.
  2. Go to Settings → Integrations.
  3. Select Add instance to create a new integration configuration.
  4. Select the workspaces where this integration should be available.
About workspacesWorkspaces determine where this integration is available. They let you isolate provider setups by region or business line, or share the same configuration across multiple workspaces.

​
Step 1: Choose the integration type

  • Select Payment.
  • Continue to the next step.

​
Step 2: Choose the provider

  • Select Network International.
  • Continue to the next step.

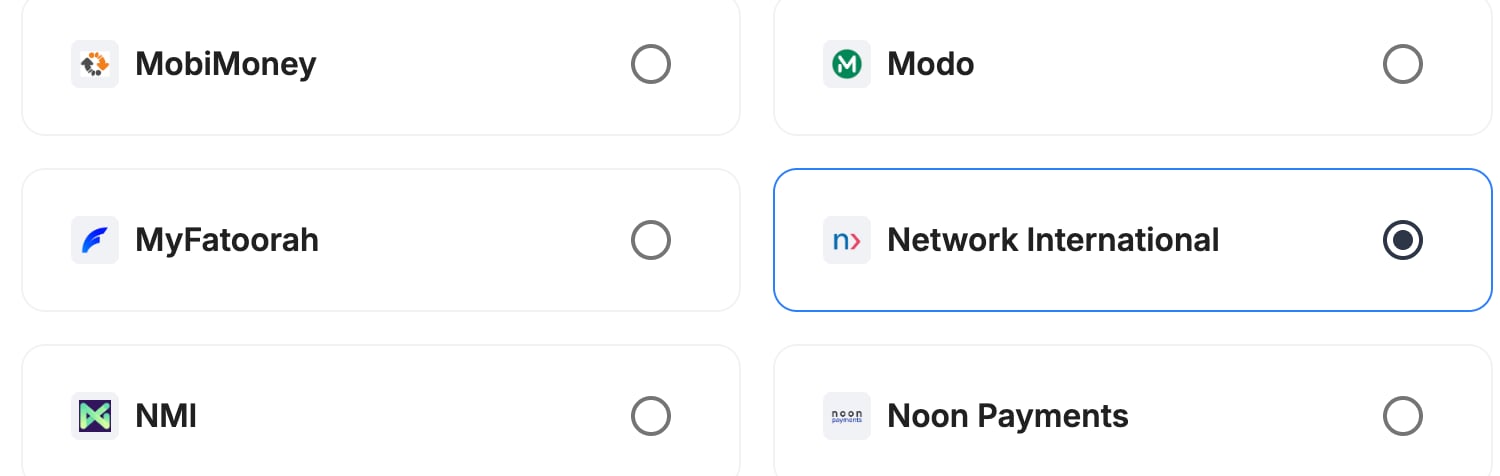

A screenshot showing Network International selected as the provider.

​
Step 3: Configure your Network International integration

What you’ll need from Network InternationalBefore you begin, make sure you can log in to the N-Genius portal. You’ll copy your outlet reference and API key, and set up a webhook.

​
Integration instance name

An integration instance is a specific payment provider setup in Payrails. You can create multiple instances for different regions, currencies, or business needs. Choose a clear, consistent name, as it is used in routing.
In Payrails
  • Enter an Instance name for your integration, for example merchant_ngenius.
A screenshot showing the integration instance name field.

​
Account details

In N-Genius
  • Go to Settings → Organizational Hierarchy, select your outlet in the left-hand panel and copy its reference.

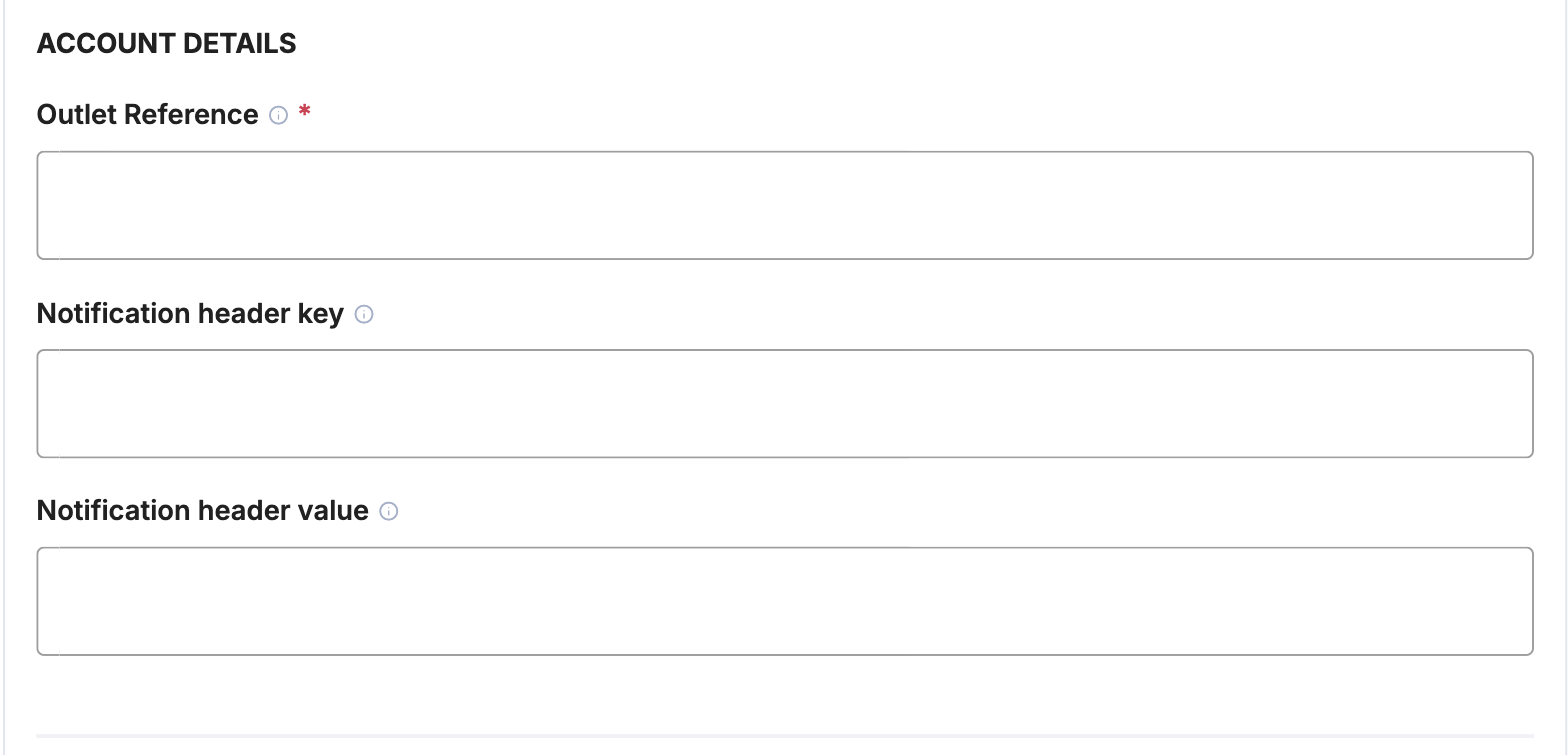

In Payrails A screenshot showing the Network International account details fields.

​
Credentials

In N-Genius
  • Go to Settings → Integrations → Service accounts and create or copy an API key.

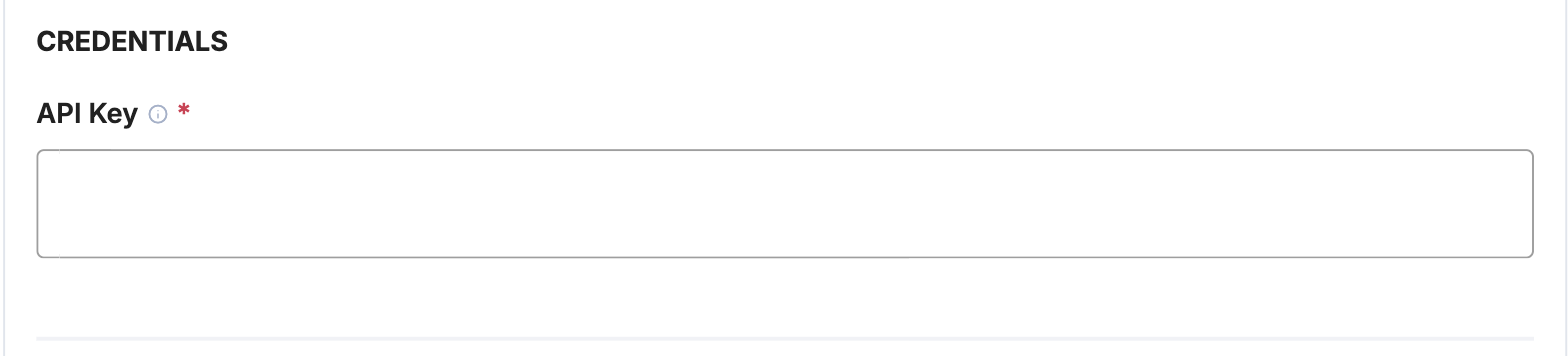

In Payrails Payrails sends requests to the N-Genius sandbox in test mode and to the live environment in live mode, so use the API key for the matching environment. A screenshot showing the Network International credential fields.

​
Payment methods

In Payrails
  • Select Card, Apple Pay, Google Pay or any combination.

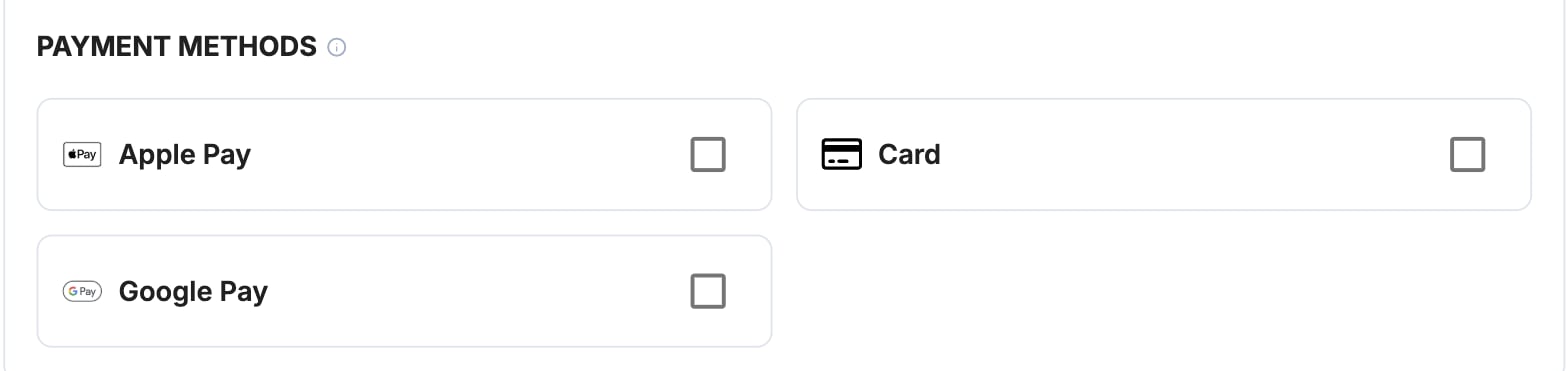

A screenshot showing the Network International payment method selection.

​
Webhooks or notifications

Payrails uses provider webhooks or notifications to receive asynchronous payment status updates.
Create webhooks in the same mode (test or live) as your Payrails integration.
In Payrails
  • Copy the Notification URL shown under Account configuration at the top of the integration form.
In N-Genius
  1. Go to Settings → Integrations → Webhooks and add a webhook with the Payrails notification URL.
  2. Add a custom header: use the same key and value you entered in Notification header key and Notification header value.
  3. Save the webhook.

​
Request fields for Network International

Send these fields in the authorize request for card payments, in addition to the standard authorize fields. Required fields must be present for the payment to succeed. Payrails sends Optional fields to Network International when you include them. For more about meta fields, refer to Meta fields.

​
Enable the integration

In Payrails
  • Select Save account to enable the integration.
  • Confirm the integration shows as Enabled.
Your Network International integration is now ready to process payments.

​
Next steps

  1. Run a test payment using an N-Genius test card.
  2. Verify that:
    • The payment appears in the N-Genius portal.
    • The payment status updates correctly in Payrails.
  3. Once verified in test mode, repeat the setup in live mode.
→ Continue to: Test a payment
