Who should use this guideThis guide is intended for merchants who:
  • Use Payrails as a payment orchestrator
  • Use Paymob to accept Meeza Wallet payments in Egypt
  • Have an active Paymob account with a Mobile Wallet payment integration

​
Create a Paymob integration in Payrails

  1. Log in to the Payrails portal.
  2. Go to Settings → Integrations.
  3. Select Add instance to create a new integration configuration.
  4. Select the workspaces where this integration should be available.
About workspacesWorkspaces determine where this integration is available. They let you isolate provider setups by region or business line, or share the same configuration across multiple workspaces.

​
Step 1: Choose the integration type

  • Select Payment.
  • Continue to the next step.

​
Step 2: Choose the provider

  • Select Paymob.
  • Continue to the next step.

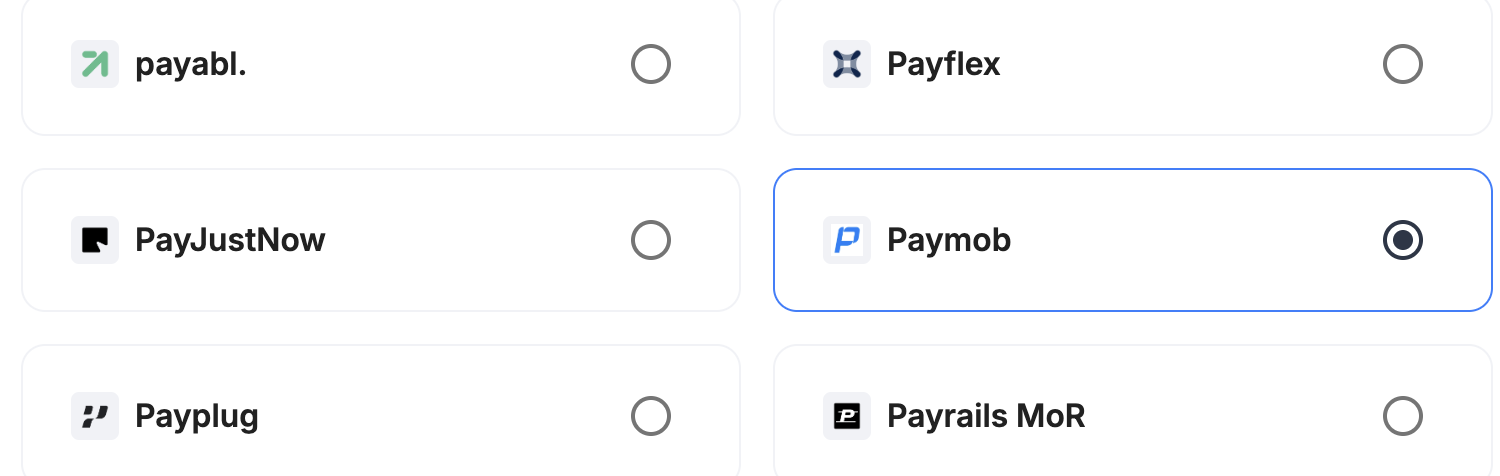

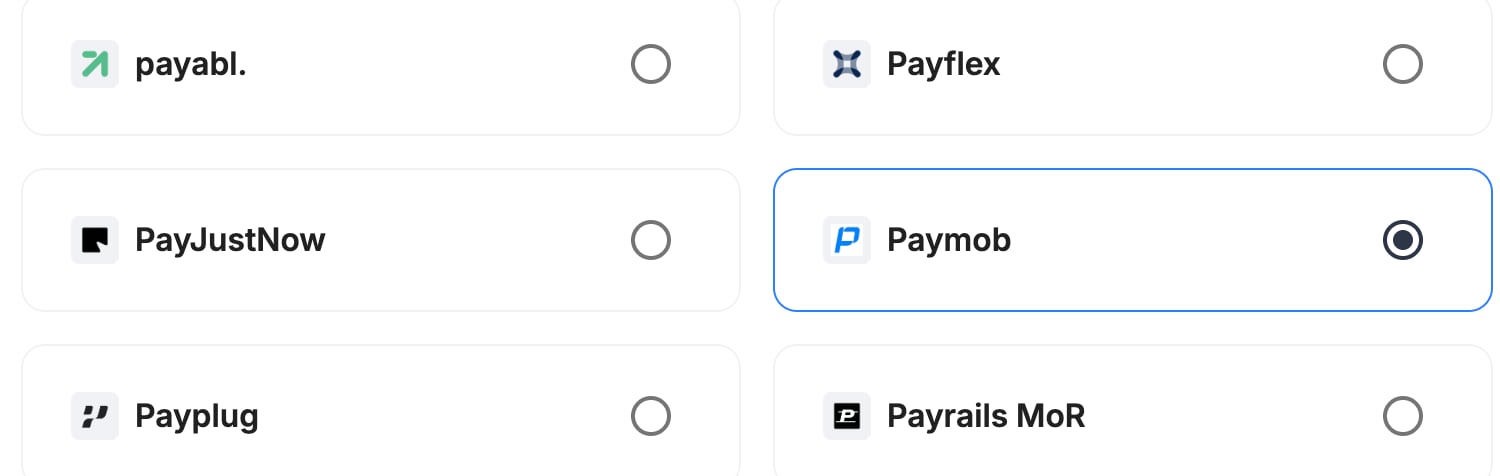

A screenshot showing Paymob selected as the provider.

​
Step 3: Configure your Paymob integration

What you’ll need from PaymobBefore you begin, make sure you can log in to the Paymob dashboard. You’ll copy your merchant ID, the integration ID of your Mobile Wallet payment integration, and your API keys from it.

​
Integration instance name

An integration instance is a specific payment provider setup in Payrails. You can create multiple instances for different regions, currencies, or business needs. Choose a clear, consistent name, as it is used in routing.
In Payrails
  • Enter an Instance name for your integration, for example merchant_paymob.

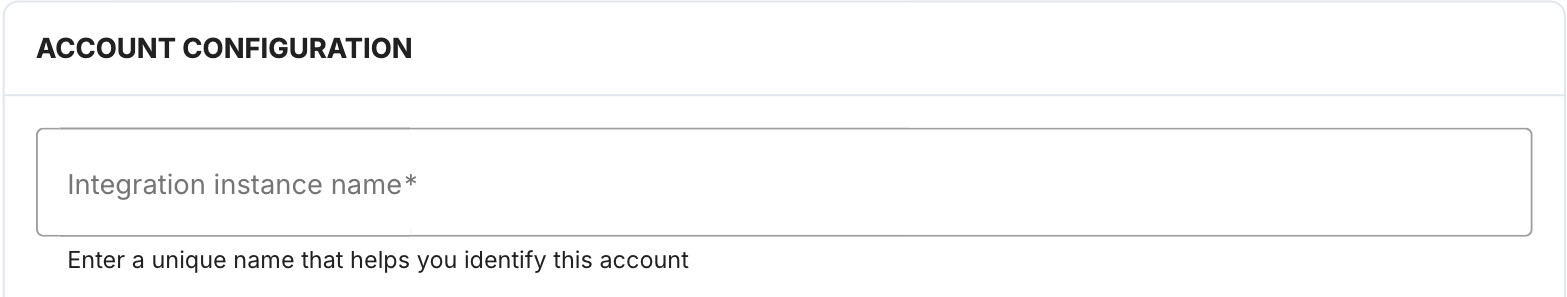

A screenshot showing the integration instance name field.

​
Account details

In Paymob
  1. Go to Settings → Contact Information and copy your Merchant ID.
  2. Go to Developers → Payment Integrations and copy the Integration ID of your payment integration of type Mobile Wallet.

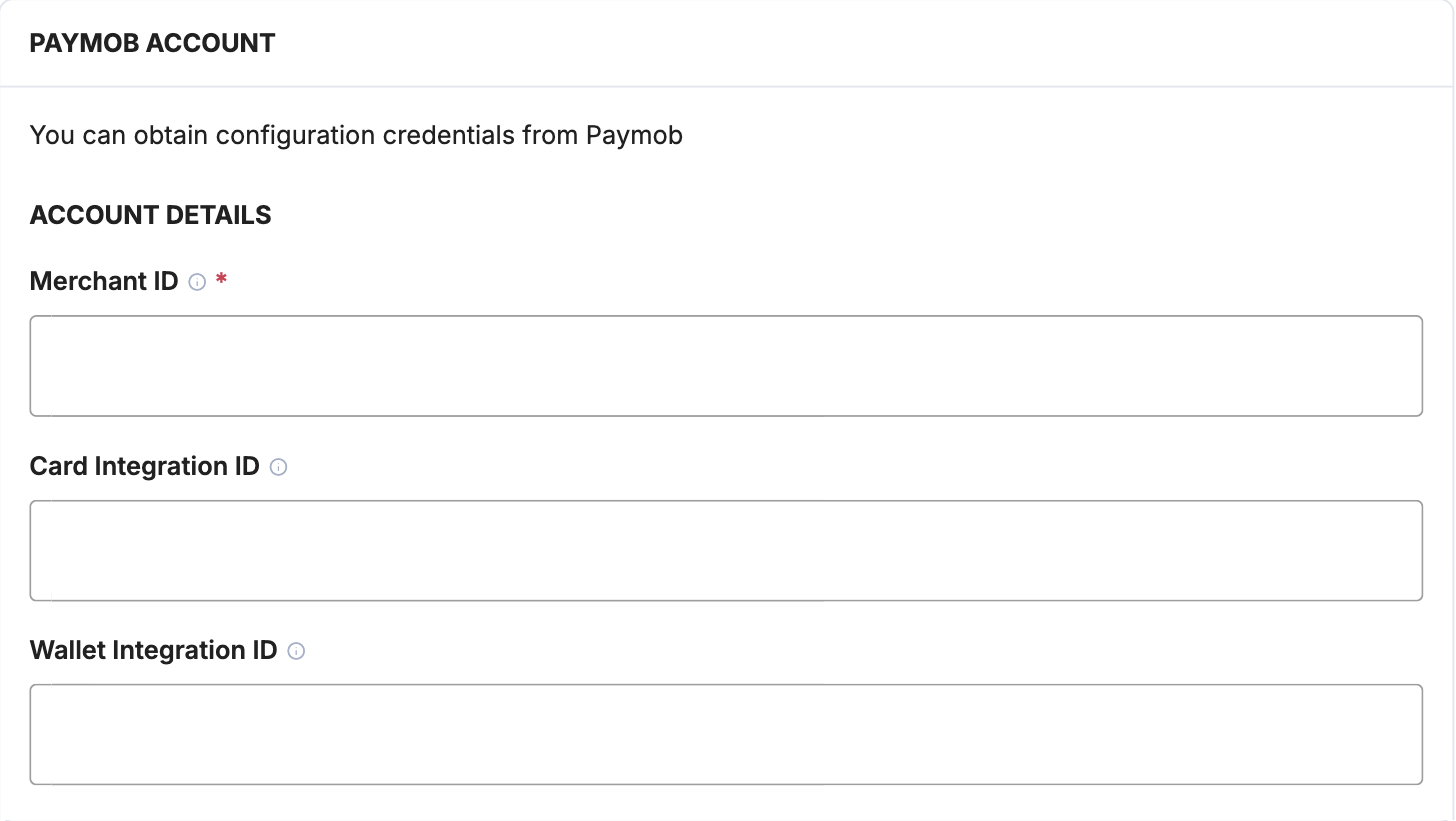

In Payrails A screenshot showing the Paymob account details fields.

​
Credentials

In Paymob
  • Go to Settings → Account Info and copy your API key, secret key, public key and HMAC.

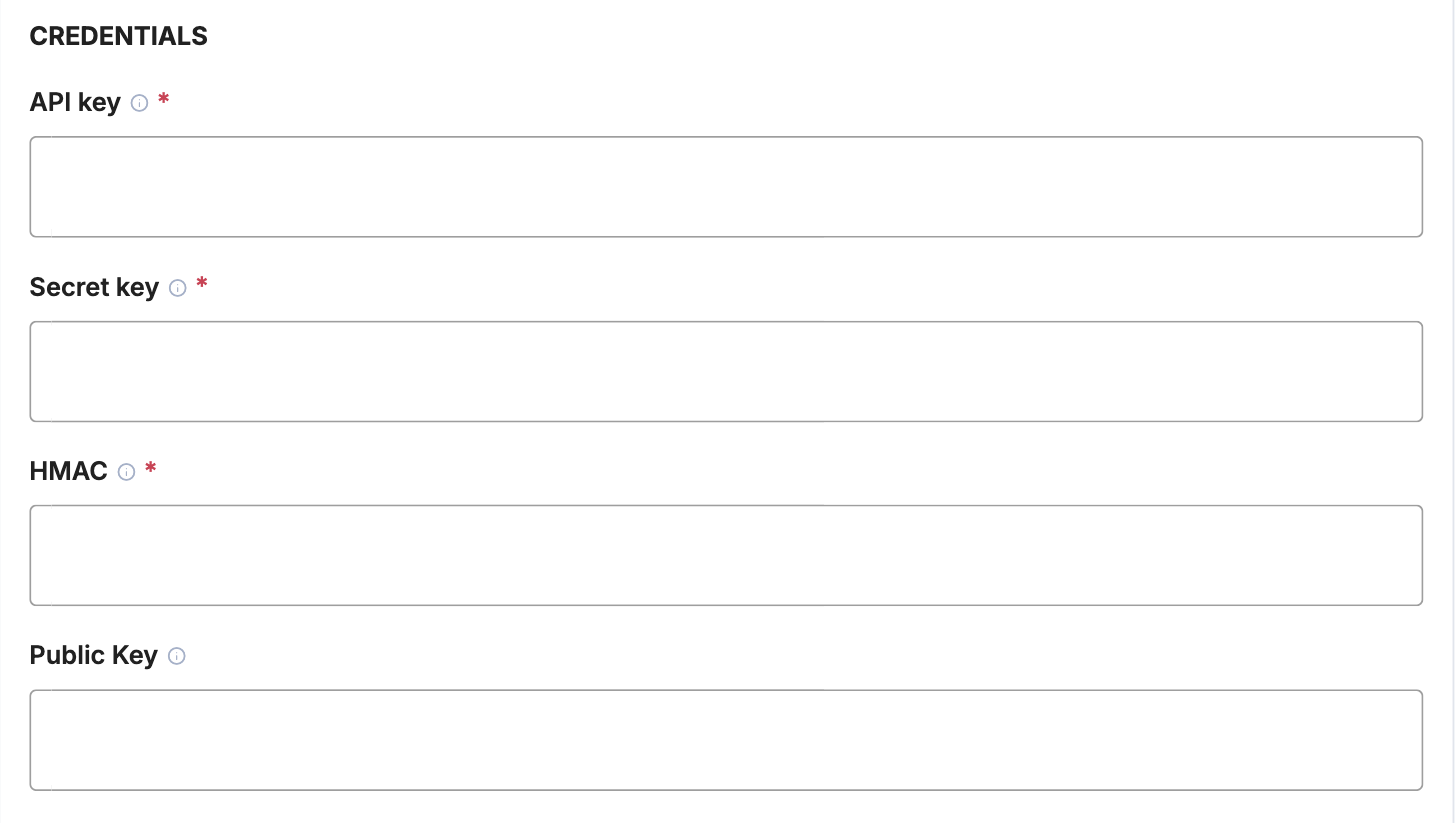

In Payrails Use the keys from the Paymob account that matches the mode of your Payrails integration: test keys for test mode, live keys for live mode. A screenshot showing the Paymob credential fields.

​
Webhooks or notifications

Payrails sends its notification URL to Paymob with every payment, so you don’t need to set one up in the Paymob dashboard. Paymob notifies Payrails of payments, refunds and voids, and Payrails verifies each notification with your HMAC secret.

​
Payment methods

In Payrails
  • Select Meeza Wallet.

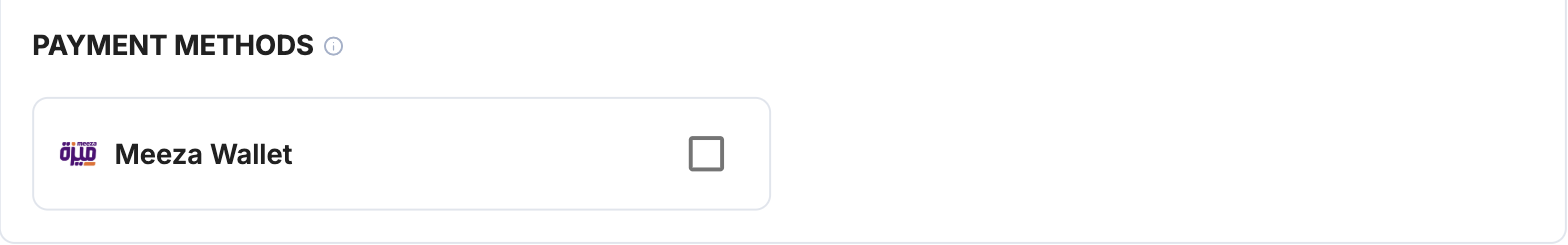

A screenshot showing the Paymob payment method selection.

​
Request fields for Paymob

Send these fields in the authorize request, in addition to the standard authorize fields. Required fields must be present for the payment to succeed. Payrails sends Optional fields to Paymob when you include them. For more about meta fields, refer to Meta fields.

​
Enable the integration

In Payrails
  • Select Save account to enable the integration.
  • Confirm the integration shows as Enabled.
Your Paymob integration is now ready to process payments.

​
Next steps

  1. Run a test Meeza Wallet payment with your Paymob test keys.
  2. Verify that:
    • The payment appears in Paymob.
    • The payment status updates correctly in Payrails.
  3. Once verified in test mode, repeat the setup with your live keys.
→ Continue to: Test a payment
