Platron

Who should use this guideThis guide is intended for merchants who:

Use Payrails as a payment orchestrator
Use Platron for card processing
Have an active Platron merchant account

Create a Platron integration in Payrails

Log in to the Payrails portal.
Go to Settings → Integrations.
Select Add instance to create a new integration configuration.
Select the workspaces where this integration should be available.

About workspacesWorkspaces determine where this integration is available. They let you isolate provider setups by region or business line, or share the same configuration across multiple workspaces.

Step 1: Choose the integration type

Select Payment.
Continue to the next step.

Step 2: Choose the provider

Select Platron.
Continue to the next step.

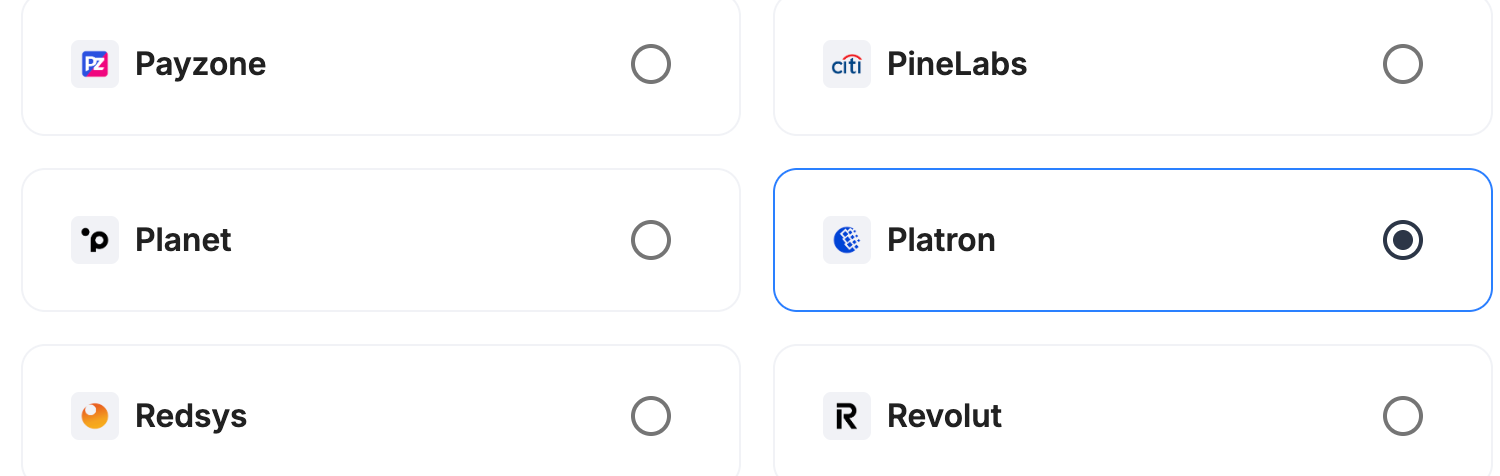

A screenshot showing Platron selected as the provider.

Step 3: Configure your Platron integration

What you’ll need from PlatronBefore you begin, make sure you have your Platron merchant ID, payment system and secret key, and the Platron API version of your account. Platron provides them.

Integration instance name

An integration instance is a specific payment provider setup in Payrails. You can create multiple instances for different regions, currencies, or business needs. Choose a clear, consistent name, as it is used in routing.

In Payrails

Enter an Instance name for your integration, for example merchant_platron.

A screenshot showing the integration instance name field.

Account details

In Payrails

Field	Value
Merchant ID	Your Platron merchant ID
Payment System	The Platron payment system for your card payments
API Version	Optional. The Platron API version of your account, for example `4`. Refer to Configure Platron settings.
Payments will be processed by Sberbank	Optional. Refer to Configure Platron settings.
Enable Parsing pg_result Property in Refund Notifications	Optional. Refer to Configure Platron settings.

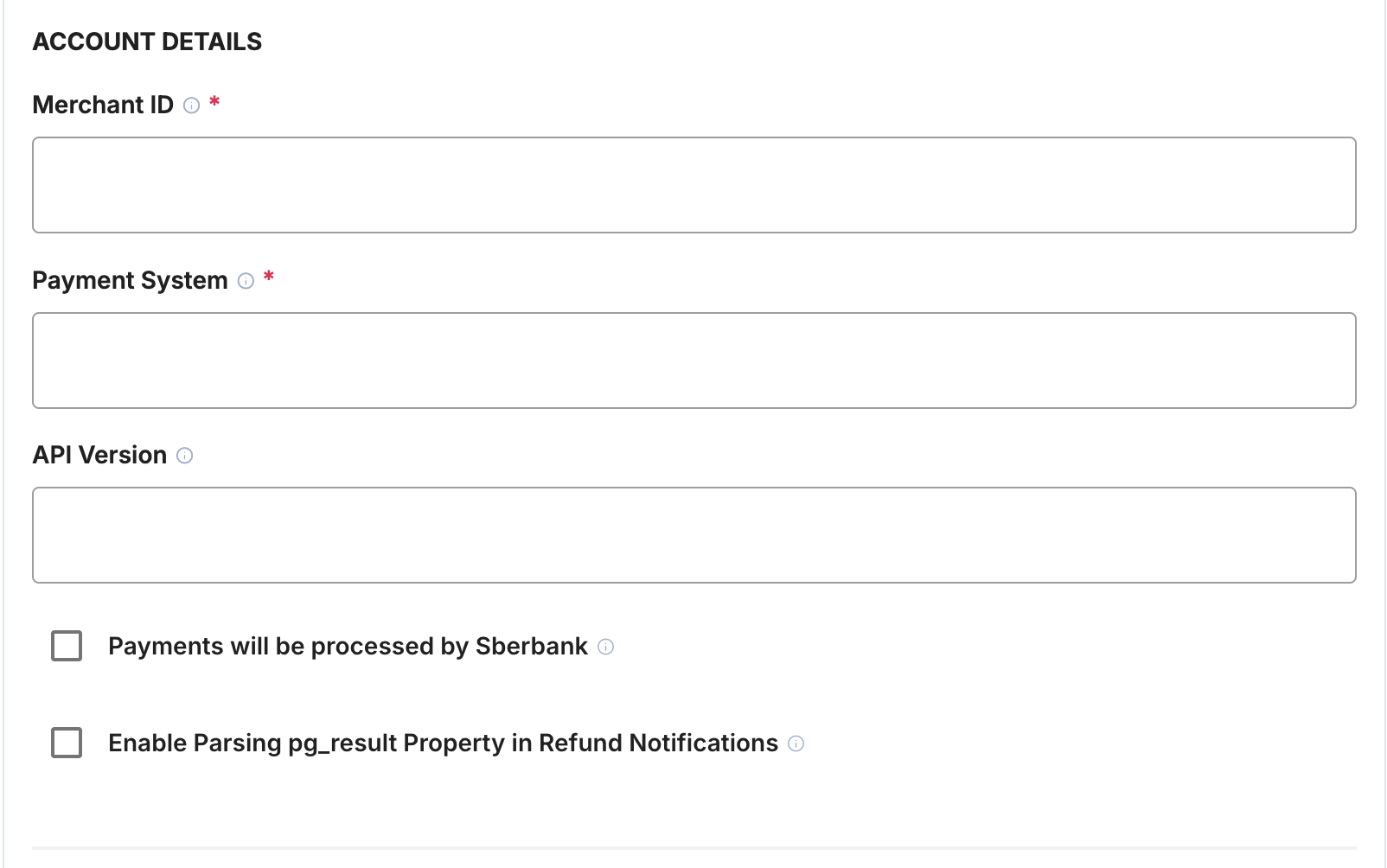

A screenshot showing the Platron account details fields.

Credentials

In Payrails

Field	Value
Secret	Your Platron secret key. Payrails signs every request with it and verifies every notification and redirect from Platron.

In test mode, Payrails marks every payment as a test payment for Platron.

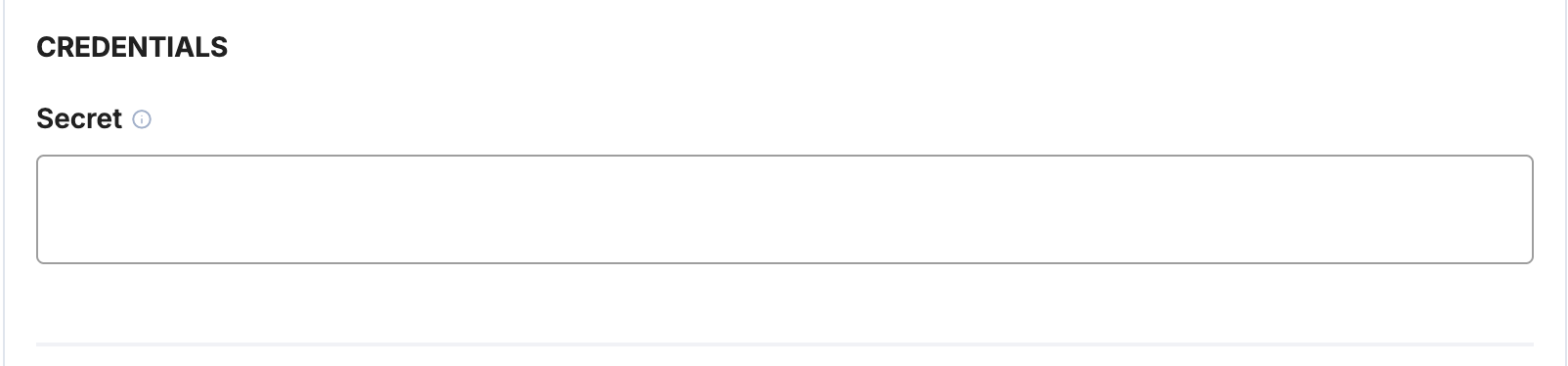

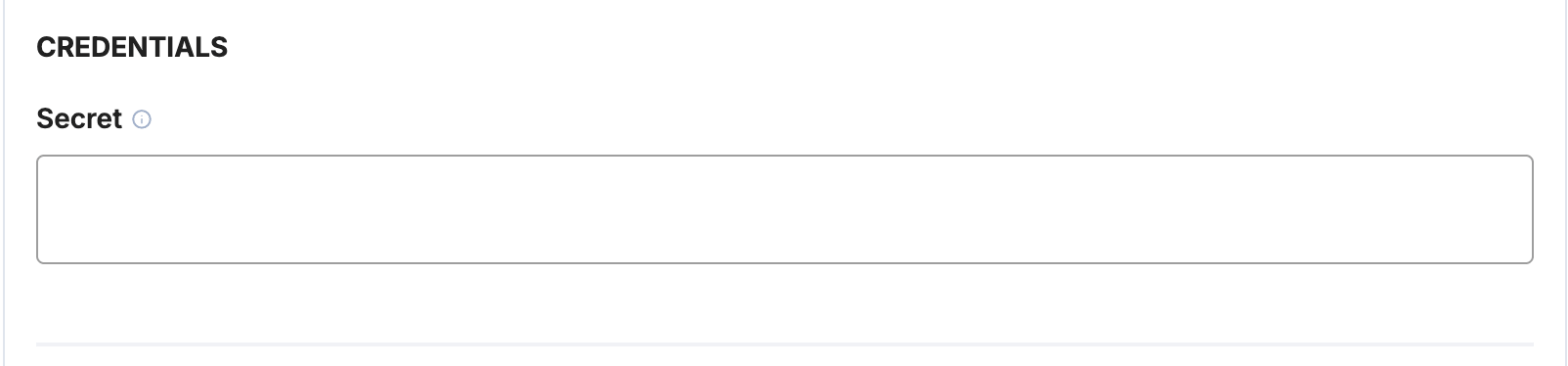

A screenshot showing the Platron credential fields.

Payment methods

In Payrails

Select Card.

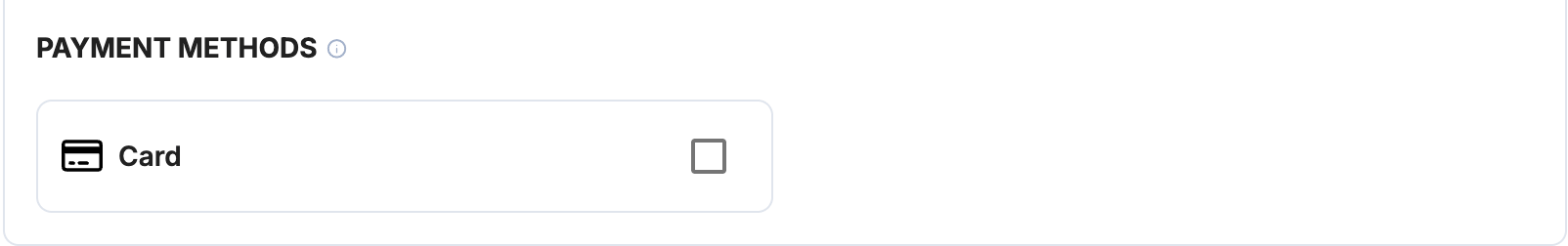

A screenshot showing the Platron payment method selection.

Webhooks or notifications

Payrails sends its notification URLs for payment results, captures and refunds to Platron with every payment, so you don’t need to set them up in Platron. Payrails verifies each notification with your secret key.

Request fields for Platron

Send these fields in the authorize request for card payments, in addition to the standard authorize fields. Required fields must be present for the payment to succeed. Payrails sends Optional fields to Platron when you include them. For more about meta fields, refer to Meta fields.

Field	Status	Description
`amount`	Required	Sent to Platron as the amount and currency.
`meta.order.description`	Required	Sent as the payment description.
`meta.clientContext.ipAddress`	Required	Customer-initiated payments only. Sent as the customer IP.
`meta.clientContext.userAgent`, `acceptHeader`	Required	Merchant-initiated payments on API version `4` or later that need Platron’s device data step. Payrails also sends `language`, `colorDepth`, `screenHeight`, `screenWidth` and `timeZoneOffset` when you include them.
`meta.customer.email`	Optional	Sent as the customer email.
`meta.customer.phone`	Optional	Sent as the customer phone.
`instrument.holderName`	Optional	Sent as the card holder.
`merchantReference`	Optional	Sent as an extra parameter with the payment.
`instrument.storeInstrument`	Optional	Starts a Platron recurring profile. Payrails uses it for later merchant-initiated payments.

Configure Platron settings

Some Platron integration settings change how Payrails processes your payments. The portal shows the same description when you hover over each setting.

Setting	What it does
API Version	Sets how Payrails tracks payments with Platron. From version `2`, Payrails tracks merchant-initiated payments that need an extra step until they complete. From version `3`, Payrails also reads final results from Platron’s payment status checks. From version `4`, Payrails completes Platron’s device data step for these payments.
Payments will be processed by Sberbank	Turn this on if Sberbank processes your Platron card payments. Payrails then completes pending merchant-initiated payments through Sberbank’s validation step.
Enable Parsing pg_result Property in Refund Notifications	By default, Payrails treats a refund notification as successful when its failure code is `0`. When you turn this on, Payrails treats it as successful only when its `pg_result` is `1`.

Enable the integration

In Payrails

Select Save account to enable the integration.
Confirm the integration shows as Enabled.

Your Platron integration is now ready to process payments.

Next steps

Run a test card payment with your Payrails integration in test mode.
Verify that:
- The payment appears in Platron.
- The payment status updates correctly in Payrails.
Once verified in test mode, repeat the setup in live mode.

→ Continue to: Test a payment
