Billing

This guide shows how to pair a billing engine with Payrails for sign-up, renewals, retries, and instrument management.

Supported billing engines

Payrails works with any billing engine that:

Creates invoices for subscription charges
Sends invoice lifecycle webhooks (for example, “invoice ready to pay”)
Exposes an API to record external payments against invoices

Examples include an in-house billing engine or third-party systems such as Stripe, Chargebee, Metronome, Recurly, Lago, and others.


flowchart LR

classDef surface fill:#f6f8fa,stroke:#9aa0a6,color:#202124
classDef platform fill:#e8f0fe,stroke:#1a73e8,color:#174ea6
classDef biz fill:#fff7e6,stroke:#f29900,color:#8a4b00
classDef fin fill:#eaf7f1,stroke:#137333,color:#0d4727

subgraph Customer_Frontend["Your frontend"]
FE[Web and mobile experiences]
end

class FE surface
subgraph Customer_Backend["Your backend"]
BE[Billing service]
end

class BE surface
subgraph Payrails["Payrails"]
PR[Payments OS]
end

class PR platform
subgraph Billing_Engine["Billing engine"]
BL[Subscriptions, invoicing, and dunning]
end

class BL biz
subgraph Payment_Providers["Payment providers"]
PSP[Acquirers and PSPs]
end

class PSP fin

%% Core interactions
FE <--> BE
FE <-- Secure payment interactions --> PR
BE <--> PR
BE <--> BL
PR <--> PSP

User journeys

End-user experience:

Pay with a preferred payment method, whether card or local payment method

Recommended approach:

Your billing engine creates a customer and subscription and generates an invoice.
Payrails Drop-in or Elements collects and stores a payment instrument.
Your backend records the successful payment in your billing engine and links the stored instrument for future renewals.

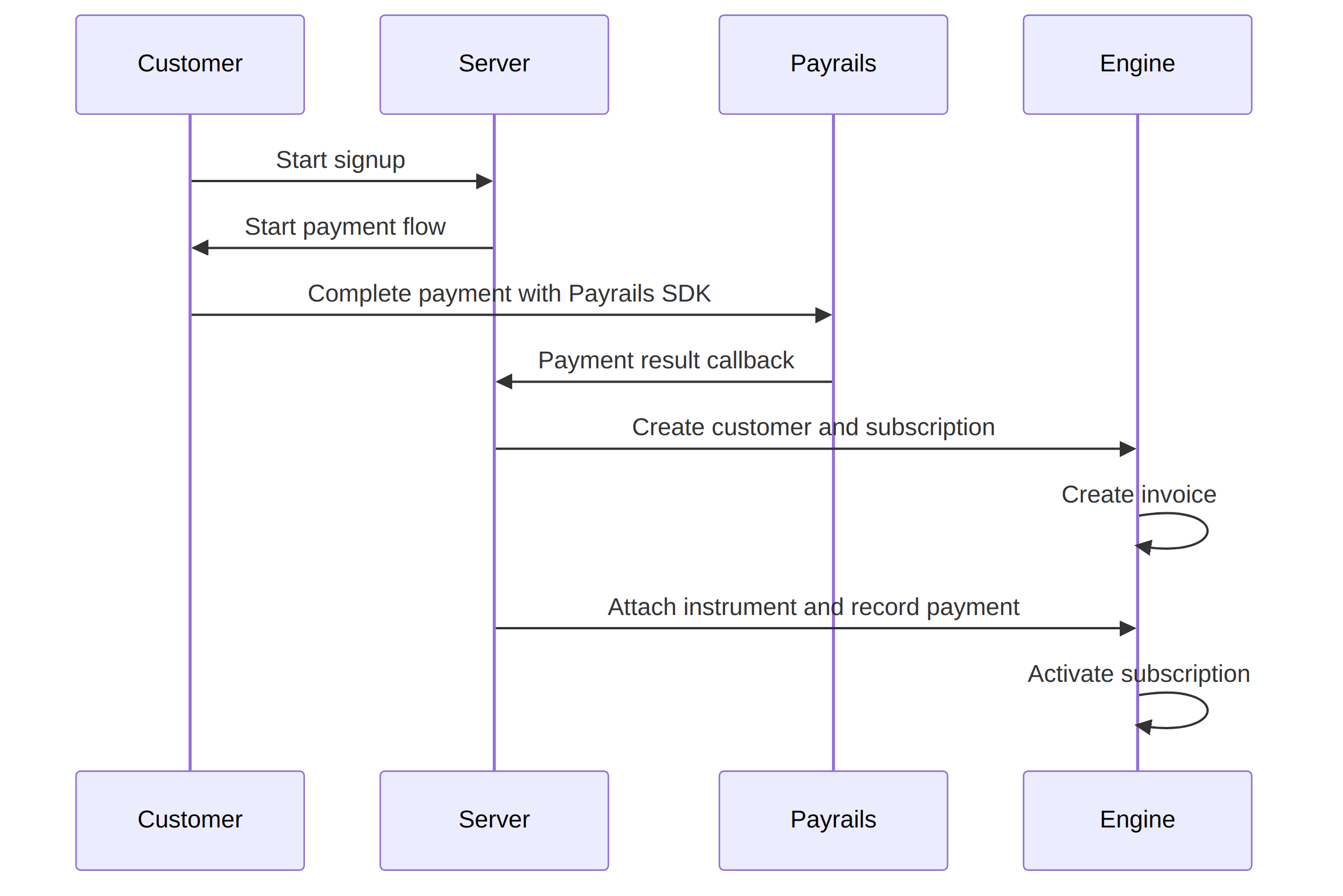

sequenceDiagram

Customer->>Server: Start signup
Server->>Customer: Start payment flow
Customer->>Payrails: Complete payment with `Payrails` SDK
Payrails->>Server: Payment result callback
Server->>Engine: Create customer and subscription
Engine->>Engine: Create invoice
Server->>Engine: Attach instrument and record payment
Engine->>Engine: Activate subscription

Integration details

This guide uses a fictional subscription business called Needle & Groove. The examples are in TypeScript, but the API calls apply in any language.

Understand the identifiers

Align these identifiers across your frontend, backend, Payrails, and billing engine:

holderReference: Your customer identifier. Make sure your billing engine contains a reference from the customer object to this identifier.
invoiceId: The invoice you need to pay (created by your billing engine).
paymentInstrumentId: The stored Payrails instrument to charge for renewals.
paymentId: The Payrails payment transaction identifier for an attempt. Store it against the invoice to reconcile billing-engine invoice attempts with Payrails outcomes.
merchantReference: A unique identifier for the payment attempt. A common choice is invoiceId plus the attempt number.

In Payrails, represent amounts in major units strings (for example, 25.00 for €25.00) and use ISO 4217 currencies.

Set up server-side `Payrails` access

Make Payrails API calls from your server and keep credentials off the client.

Use these Payrails docs to set up authentication and mutual TLS:

The server endpoints in this guide follow this recommended pattern:

POST /api/payrails/init calls Payrails POST /merchant/client/init using mTLS + OAuth.
POST /api/payrails/execution calls Payrails POST /merchant/workflows/{workflowCode}/executions.
GET /api/payrails/instruments?holderReference=... lists instruments for a customer.

Accept the first subscription payment

This guide creates the invoice in your billing engine first. Then initializes Payrails with the invoice amount and collect a payment method. Authorize the payment first and only create the invoice once you are sure a payment has been successful to not have unused subscriptions.

Create a subscription and invoice in your billing engine

Return at least these fields to your frontend:

invoiceId
amount
currency

Example request to your billing engine adapter:

type CreateSubscriptionRequest = {
  email: string
  amountMinor: number
  currency: string
  holderReference: string
  interval: 'month' | 'year' | '...'
}

type CreateSubscriptionResponse = {
  invoiceId?: string
  amount: string
  currency: string
  holderReference: string
  customer?: { id: string }
  subscription?: { id: string }
}

export async function createSubscriptionAndInvoice(baseUrl: string) {
  const body: CreateSubscriptionRequest = {
    email: '[email protected]',
    amount: 25.00,
    currency: 'EUR',
    holderId: 'b8fe6271-5d71-4d28-b8e8-89e64acc0c49',
    interval: 'month',
  }

  const res = await fetch(`/api/subscriptions`, {
    method: 'POST',
    headers: { 'Content-Type': 'application/json' },
    body: JSON.stringify(body),
  })

  if (!res.ok) throw new Error(await res.text())
  return (await res.json()) as CreateSubscriptionResponse
}

from typing import TypedDict, Optional
import requests


class CreateSubscriptionResponse(TypedDict, total=False):
    invoiceId: str
    amount: str
    currency: str
    holderReference: str
    customer: dict
    subscription: dict


def create_subscription_and_invoice(base_url: str) -> CreateSubscriptionResponse:
    body = {
        "email": "[email protected]",
        "amount": 25.00,
        "currency": "EUR",
        "holderId": "b8fe6271-5d71-4d28-b8e8-89e64acc0c49",
        "interval": "month",
    }

    res = requests.post(f"/api/subscriptions", json=body)
    res.raise_for_status()
    return res.json()

import java.net.URI;
import java.net.http.HttpClient;
import java.net.http.HttpRequest;
import java.net.http.HttpResponse;

public class BillingEngineExample {
  public static String createSubscriptionAndInvoice(String baseUrl) throws Exception {
    String json = "{" +
      "\"email\":\"[email protected]\"," +
      "\"amount\":25.00," +
      "\"currency\":\"EUR\"," +
      "\"holderId\":\"b8fe6271-5d71-4d28-b8e8-89e64acc0c49\"," +
      "\"interval\":\"month\"" +
    "}";

    HttpClient client = HttpClient.newHttpClient();
    HttpRequest req = HttpRequest.newBuilder()
      .uri(URI.create("/api/subscriptions"))
      .header("Content-Type", "application/json")
      .POST(HttpRequest.BodyPublishers.ofString(json))
      .build();

    HttpResponse<String> res = client.send(req, HttpResponse.BodyHandlers.ofString());
    if (res.statusCode() < 200 || res.statusCode() >= 300) {
      throw new RuntimeException(res.body());
    }
    return res.body();
  }
}

Initialize the Payrails Web SDK (server-side)

Call your backend to create a Payrails client session.

type PayrailsAmount = {
  value: string;
  currency: string;
}

type PayrailsInitRequest = {
  amount: PayrailsAmount;
  type: string;
  workflowCode: string;
  merchantReference: string;
  holderReference: string;
  meta?: Record<string, unknown>;
}

export async function initPayrailsSession(baseUrl: string) {
  const body: PayrailsInitRequest = {
    amount: { value: String(amount), currency: 'EUR' },
    type: 'dropIn',
    workflowCode: 'payment-acceptance',
    merchantReference: 'invoiceId',
    holderReference: 'tp_2bc33192-7de7-41ba-b01d-f84bc8cc4f8a'
    meta: { order: { reference: invoiceId } }
  }

  const res = await fetch(`/api/payrails/init`, {
    method: 'POST',
    headers: {
        Authorization: `Bearer ${accessToken}`,
        'Content-Type': 'application/json',
        'Accept': 'application/json',
        'x-idempotency-key': crypto.randomUUID(),
    },
    body: JSON.stringify(body),
  })

  if (!res.ok) throw new Error(await res.text())
  return await res.json()
}

import uuid
import requests


def init_payrails_session(base_url: str, access_token: str, invoice_id: str, amount: int) -> dict:
    body = {
        "amount": {"value": str(amount), "currency": "EUR"},
        "type": "dropIn",
        "workflowCode": "payment-acceptance",
        "merchantReference": invoice_id,
        "holderReference": "tp_2bc33192-7de7-41ba-b01d-f84bc8cc4f8a",
        "meta": {"order": {"reference": invoice_id}},
    }
    headers = {
        "Authorization": f"Bearer {access_token}",
        "Content-Type": "application/json",
        "Accept": "application/json",
        "x-idempotency-key": str(uuid.uuid4()),
    }

    res = requests.post(f"/api/payrails/init", json=body, headers=headers)
    res.raise_for_status()
    return res.json()

import java.net.URI;
import java.net.http.HttpClient;
import java.net.http.HttpRequest;
import java.net.http.HttpResponse;
import java.util.UUID;

public class PayrailsInitExample {
  public static String initPayrailsSession(String baseUrl, String accessToken, String invoiceId, int amountMinor) throws Exception {
    String json = "{" +
      "\"amount\":{\"value\":\"" + amountMinor + "\",\"currency\":\"EUR\"}," +
      "\"type\":\"dropIn\"," +
      "\"workflowCode\":\"payment-acceptance\"," +
      "\"merchantReference\":\"" + invoiceId + "\"," +
      "\"holderReference\":\"tp_2bc33192-7de7-41ba-b01d-f84bc8cc4f8a\"," +
      "\"meta\":{\"order\":{\"reference\":\"" + invoiceId + "\"}}" +
    "}";

    HttpRequest req = HttpRequest.newBuilder()
      .uri(URI.create("/api/payrails/init"))
      .header("Authorization", "Bearer " + accessToken)
      .header("Content-Type", "application/json")
      .header("Accept", "application/json")
      .header("x-idempotency-key", UUID.randomUUID().toString())
      .POST(HttpRequest.BodyPublishers.ofString(json))
      .build();

    HttpClient client = HttpClient.newHttpClient();
    HttpResponse<String> res = client.send(req, HttpResponse.BodyHandlers.ofString());
    if (res.statusCode() < 200 || res.statusCode() >= 300) throw new RuntimeException(res.body());
    return res.body();
  }
}

Mount Drop-in or Elements (client-side)

Use the Payrails init response to mount payment UI:

Read the Payrails Web SDK overview
Use Drop-in for a pre-built payment UI:
Use Elements for individual UI building blocks

Your onSuccess handler triggers the backend to do two things:

Resolve the stored paymentInstrumentId and attach it to the billing provider customer
Record the successful payment against the invoice in your billing engine

ℹ️ Note:
Achieve the same result by utilising Webhooks with Payrails and waiting for a successful payment. Ensure that all necessary information required by the handler is included as meta for that execution.

Record the payment in your billing engine

After Payrails authorization succeeds, record the external payment against your invoice. Some billing engines support this logic for failed payments as well.

At minimum, your billing engine update typically:

Marks the invoice as paid (or records a successful attempt)
Associates a “default payment method” reference with the customer for renewals
Stores the Payrails paymentInstrumentId and holderReference to charge it off-session

Example: Record a successful payment (adapter shape)

Use a backend endpoint that takes your invoice fields plus the Payrails instrument reference.

This page shows adapter-shaped examples. In your integration, implement these endpoints in your own backend:

POST /api/stripe/record-payment (creates a payment method with metadata and records a payment)
POST /api/chargebee/record-payment (offline collection example shape)

Example request body:

type RecordPaymentRequest = {
  invoiceId: string
  customerId: string
  subscriptionId?: string
  instrumentId: string
  amount: number
  currency: string
  successAt: string
}

export async function recordPaidInvoice(baseUrl: string) {
  const body: RecordPaymentRequest = {
    invoiceId: 'inv_123',
    customerId: 'cus_123',
    subscriptionId: 'sub_123',
    instrumentId: '55028ccb-ab15-42f4-9174-a98913b942ac',
    amount: 25.00,
    currency: 'EUR',
    successAt: new Date().toISOString(),
  }

  // In your integration, replace this with your billing engine adapter endpoint.
  const res = await fetch(`/api/billing_engine/record-payment`, {
    method: 'POST',
    headers: { 'Content-Type': 'application/json' },
    body: JSON.stringify(body),
  })

  if (!res.ok) throw new Error(await res.text())
  return await res.json()
}

import requests
from datetime import datetime, timezone


def record_paid_invoice(base_url: str) -> dict:
    body = {
        "invoiceId": "inv_123",
        "customerId": "cus_123",
        "subscriptionId": "sub_123",
        "instrumentId": "55028ccb-ab15-42f4-9174-a98913b942ac",
        "amount": 2500,
        "currency": "EUR",
        "successAt": datetime.now(timezone.utc).isoformat(),
    }

    res = requests.post(f"/api/billing_engine/record-payment", json=body)
    res.raise_for_status()
    return res.json()

import java.net.URI;
import java.net.http.HttpClient;
import java.net.http.HttpRequest;
import java.net.http.HttpResponse;
import java.time.Instant;

public class RecordPaymentExample {
  public static String recordPaidInvoice(String baseUrl) throws Exception {
    String json = "{" +
      "\"invoiceId\":\"inv_123\"," +
      "\"customerId\":\"cus_123\"," +
      "\"subscriptionId\":\"sub_123\"," +
      "\"instrumentId\":\"55028ccb-ab15-42f4-9174-a98913b942ac\"," +
      "\"amount\":2500," +
      "\"currency\":\"EUR\"," +
      "\"successAt\":\"" + Instant.now().toString() + "\"" +
    "}";

    HttpRequest req = HttpRequest.newBuilder()
      .uri(URI.create("/api/billing_engine/record-payment"))
      .header("Content-Type", "application/json")
      .POST(HttpRequest.BodyPublishers.ofString(json))
      .build();

    HttpClient client = HttpClient.newHttpClient();
    HttpResponse<String> res = client.send(req, HttpResponse.BodyHandlers.ofString());
    if (res.statusCode() < 200 || res.statusCode() >= 300) throw new RuntimeException(res.body());
    return res.body();
  }
}

If you use a different billing engine, keep the same intent:

Store instrumentId on the customer (or payment method)
Record the invoice payment using your billing engine’s external payments API

Run renewals and off-session attempts

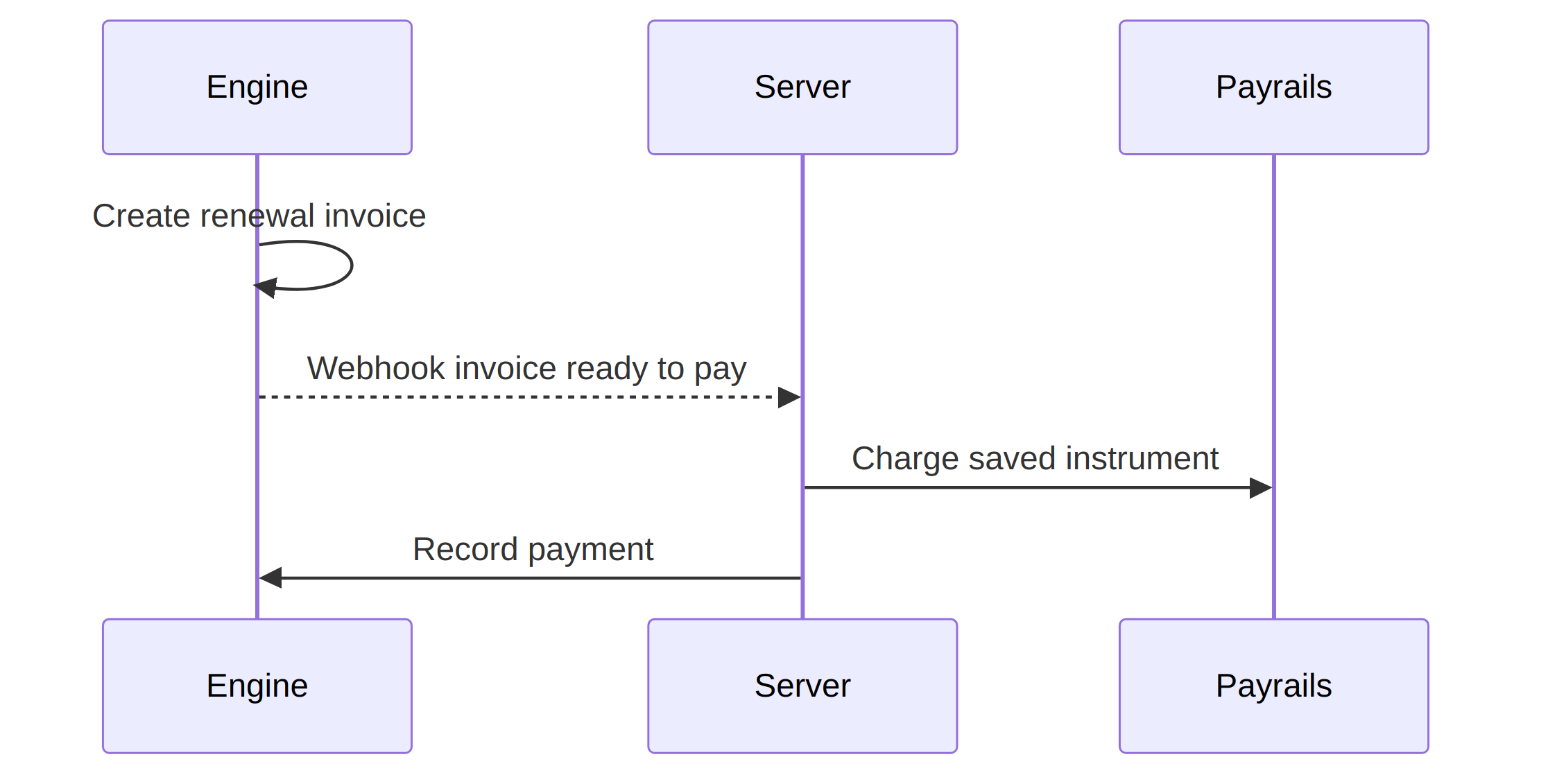

For renewals, your billing engine typically emits a webhook when an invoice is ready to be paid.

Your backend then:

Loads invoice details (amount, currency, holderReference, paymentInstrumentId)
Calls Payrails to execute an off-session payment attempt
Records the attempt result back into the billing engine

Example: Billing engine webhook handler

Your billing-engine webhook handler typically:

Verifies webhook signatures
Retrieves the invoice and associated details
Calls POST /api/payrails/execution
Reports the outcome back into the billing engine

Adapt the same pattern to your billing engine’s webhook format and security model.

Create a workflow execution (server-side)

Expose a server endpoint that creates a Payrails workflow execution (a thin wrapper around Payrails POST /merchant/workflows/{workflowCode}/executions).

To learn more about creating executions, read the Payrails Create a workflow execution overview.

type PayrailsExecutionRequest = {
  amount: number
  currency: string
  invoiceId?: string
  holderReference?: string
  paymentInstrumentId?: string
  merchantReference?: string
}

export async function createPayrailsExecution(baseUrl: string) {
  const body: PayrailsExecutionRequest = {
    amount: 25.00,
    currency: 'EUR',
    invoiceId: 'inv_123',
    holderReference: 'tp_123e4567-e89b-12d3-a456-426614174000',
    paymentInstrumentId: '55028ccb-ab15-42f4-9174-a98913b942ac',
    merchantReference: 'inv_123',
  }

  const res = await fetch(`/api/payrails/execution`, {
    method: 'POST',
    headers: { 'Content-Type': 'application/json' },
    body: JSON.stringify(body),
  })

  if (!res.ok) throw new Error(await res.text())
  return await res.json()
}

import requests


def create_payrails_execution(base_url: str) -> dict:
    body = {
        "amount": 25.00,
        "currency": "EUR",
        "invoiceId": "inv_123",
        "holderReference": "tp_123e4567-e89b-12d3-a456-426614174000",
        "paymentInstrumentId": "55028ccb-ab15-42f4-9174-a98913b942ac",
        "merchantReference": "inv_123",
    }
    res = requests.post(f"/api/payrails/execution", json=body)
    res.raise_for_status()
    return res.json()

import java.net.URI;
import java.net.http.HttpClient;
import java.net.http.HttpRequest;
import java.net.http.HttpResponse;

public class PayrailsExecutionExample {
  public static String createPayrailsExecution(String baseUrl) throws Exception {
    String json = "{" +
      "\"amount\":25.00," +
      "\"currency\":\"EUR\"," +
      "\"invoiceId\":\"inv_123\"," +
      "\"holderReference\":\"tp_123e4567-e89b-12d3-a456-426614174000\"," +
      "\"paymentInstrumentId\":\"55028ccb-ab15-42f4-9174-a98913b942ac\"," +
      "\"merchantReference\":\"inv_123\"" +
    "}";

    HttpRequest req = HttpRequest.newBuilder()
      .uri(URI.create("/api/payrails/execution"))
      .header("Content-Type", "application/json")
      .POST(HttpRequest.BodyPublishers.ofString(json))
      .build();

    HttpClient client = HttpClient.newHttpClient();
    HttpResponse<String> res = client.send(req, HttpResponse.BodyHandlers.ofString());
    if (res.statusCode() < 200 || res.statusCode() >= 300) throw new RuntimeException(res.body());
    return res.body();
  }
}

Implement retries and dunning

Define who owns the retry schedule:

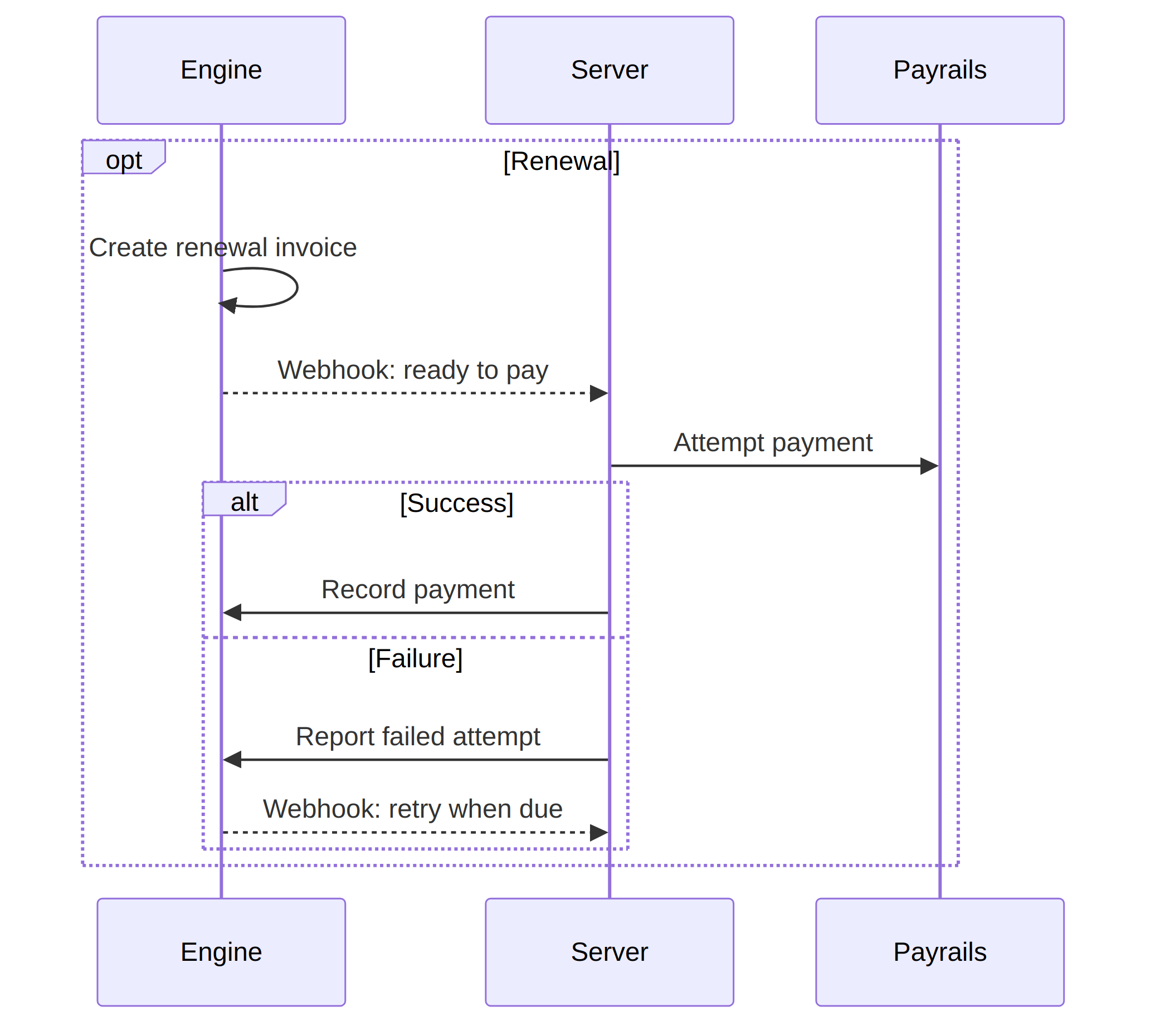

If your billing engine schedules retries, record each attempt result and wait for the next webhook.

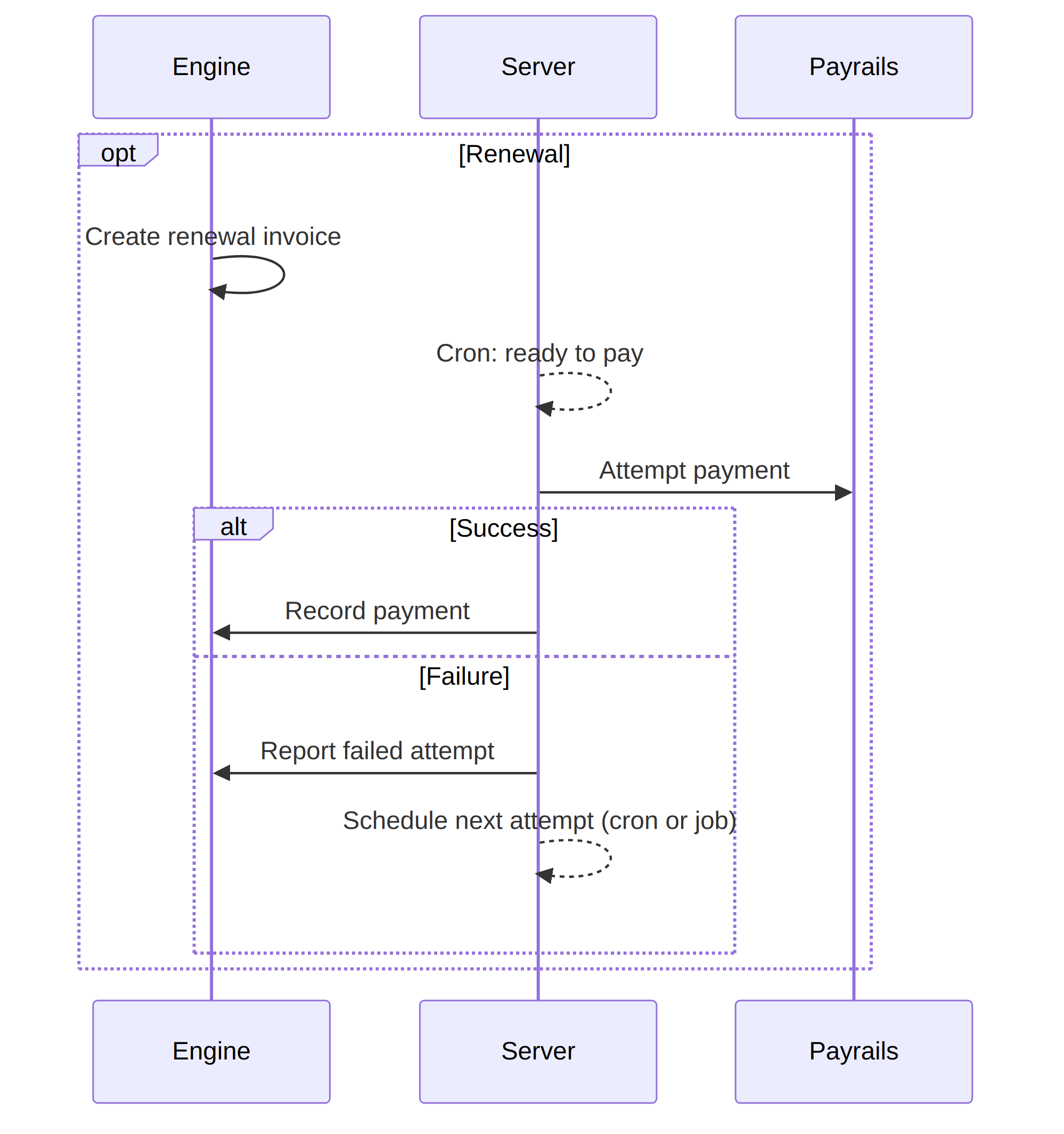

If your billing engine does not schedule retries, schedule attempts in your backend (job queue or cron).

Keep the mapping simple:

One billing-engine attempt triggers one Payrails workflow execution
One Payrails execution can include multiple cascaded provider attempts (managed by Payrails)

Manage instruments

Use Payrails as your source of truth for instruments.

List instruments for a customer:

async function listInstruments() {
  const url = new URL('/api/payrails/instruments')
  url.searchParams.set('holderReference', 'tp_123e4567-e89b-12d3-a456-426614174000')

  const res = await fetch(url.toString(), { method: 'GET' })
  if (!res.ok) throw new Error(await res.text())

  const data = (await res.json()) as { instruments: Array<{ id: string }> }
  return data.instruments
}

import requests


def list_instruments(base_url: str) -> list[dict]:
    res = requests.get(
        f"/api/payrails/instruments",
        params={"holderReference": "tp_123e4567-e89b-12d3-a456-426614174000"},
    )
    res.raise_for_status()
    return res.json()["instruments"]

import java.net.URI;
import java.net.URLEncoder;
import java.net.http.HttpClient;
import java.net.http.HttpRequest;
import java.net.http.HttpResponse;
import java.nio.charset.StandardCharsets;

public class ListInstrumentsExample {
  public static String listInstruments(String baseUrl) throws Exception {
    String holder = "tp_123e4567-e89b-12d3-a456-426614174000";
    String url = "/api/payrails/instruments?holderReference=" + URLEncoder.encode(holder, StandardCharsets.UTF_8);

    HttpRequest req = HttpRequest.newBuilder()
      .uri(URI.create(url))
      .GET()
      .build();

    HttpClient client = HttpClient.newHttpClient();
    HttpResponse<String> res = client.send(req, HttpResponse.BodyHandlers.ofString());
    if (res.statusCode() < 200 || res.statusCode() >= 300) throw new RuntimeException(res.body());
    return res.body();
  }
}

Delete an instrument:

export async function deletePayrailsInstrument(baseUrl: string, instrumentId: string) {
  const res = await fetch(
    `/api/payrails/instruments/${encodeURIComponent(instrumentId)}`,
    { method: 'DELETE' }
  )
  if (!res.ok) throw new Error(await res.text())
  return await res.json()
}

import requests


def delete_payrails_instrument(base_url: str, instrument_id: str) -> dict:
    res = requests.delete(f"/api/payrails/instruments/{instrument_id}")
    res.raise_for_status()
    return res.json()

import java.net.URI;
import java.net.http.HttpClient;
import java.net.http.HttpRequest;
import java.net.http.HttpResponse;

public class DeleteInstrumentExample {
  public static String deletePayrailsInstrument(String baseUrl, String instrumentId) throws Exception {
    HttpRequest req = HttpRequest.newBuilder()
      .uri(URI.create("/api/payrails/instruments/" + instrumentId))
      .DELETE()
      .build();

    HttpClient client = HttpClient.newHttpClient();
    HttpResponse<String> res = client.send(req, HttpResponse.BodyHandlers.ofString());
    if (res.statusCode() < 200 || res.statusCode() >= 300) throw new RuntimeException(res.body());
    return res.body();
  }
}

If your customer portal allows changing the default payment method, update your billing engine’s default reference and keep the Payrails instrument link on the billing-engine side.
