mTLS Configuration

Learn how to set up a secure connection with Payrails through mTLS.

Overview

Mutual TLS (mTLS) adds certificate‑based authentication to your API traffic with Payrails. In addition to OAuth client credentials, mTLS verifies the calling system by requiring a valid client certificate during the TLS handshake. This strengthens inbound authentication and helps meet enterprise security and compliance requirements.

This guide covers two flows:

  • Certificate exchange: request, issue, download, rotate, and revoke mTLS client certificates in the Payrails Portal.
  • Use and test: configure Postman (or another HTTP client) to present the certificate and validate calls.

Certificates are scoped per environment: you will need to create one for staging and one for production.

Prerequisites

  • Admin or Developer role in the Payrails Portal.
  • Existing API credentials (Client ID/Secret) for your service if you also use OAuth. See API credentials
  • A secure place to store private keys and certificates (for example, your secrets manager or key vault).
  • Postman desktop app (for the test flow), a terminal with curl or any HTTP client that supports client certificates.

Configuration steps

Request and manage mTLS certificates

Create a client certificate for your service and download it for installation.

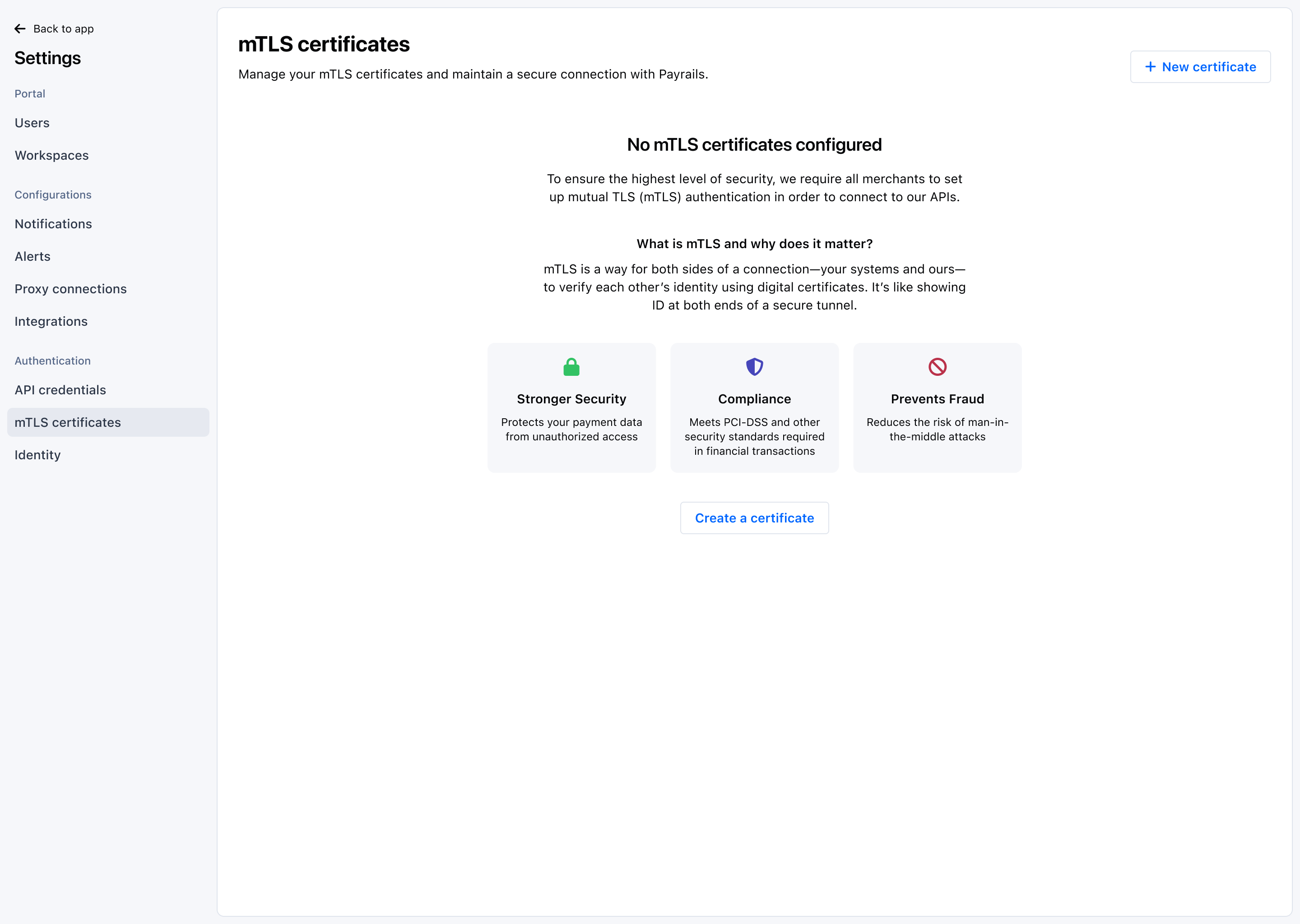

  1. In the Payrails Portal, go to Settings → mTLS certificates.

  2. Select Create certificate and provide a description if desired: owner, rotation policy or related service.

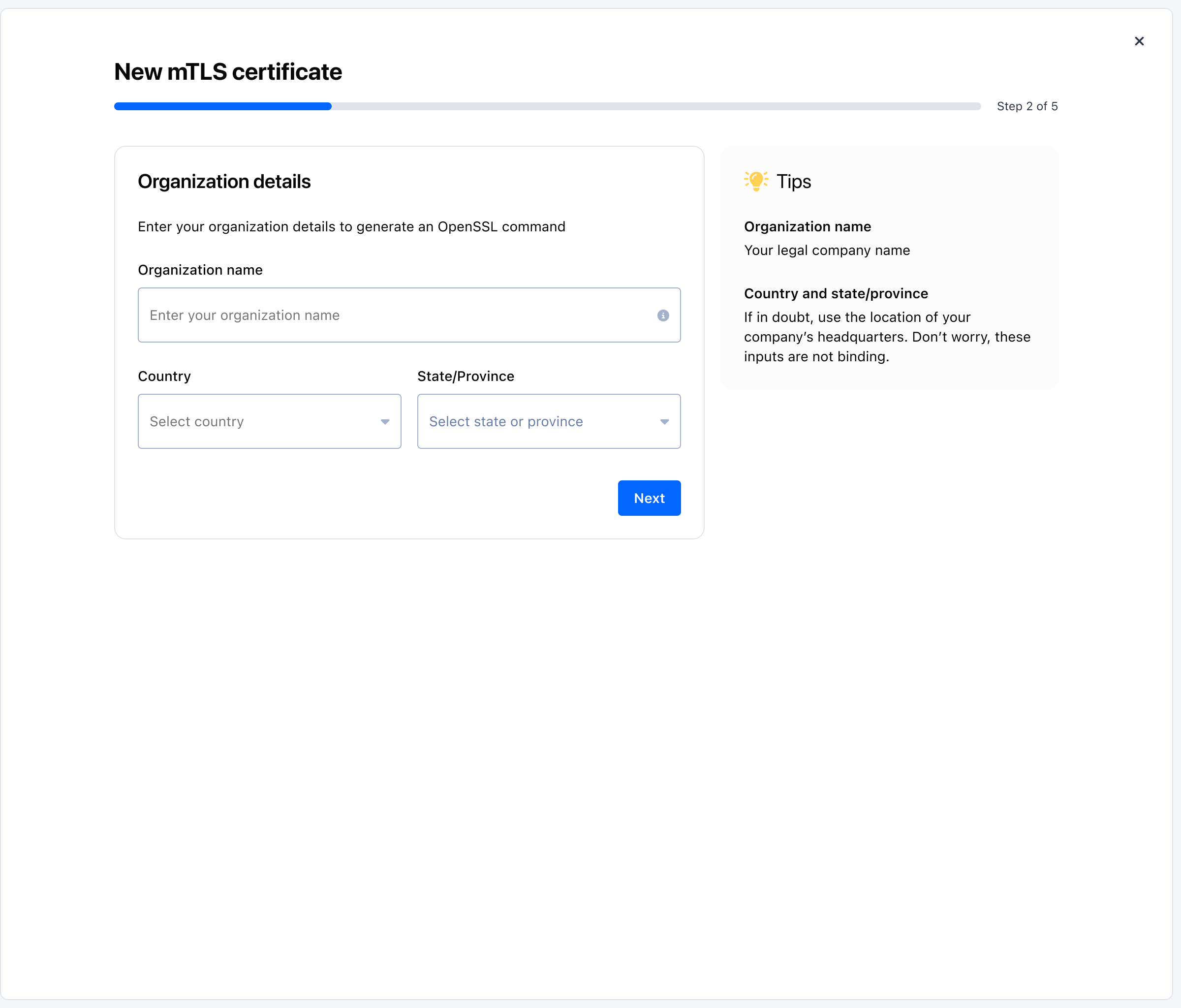

  3. Provide organization details to generate the CSR command:

    • Organization name: your legal company name.
    • Country and state/province: if unsure, use your headquarters. These inputs are not binding.

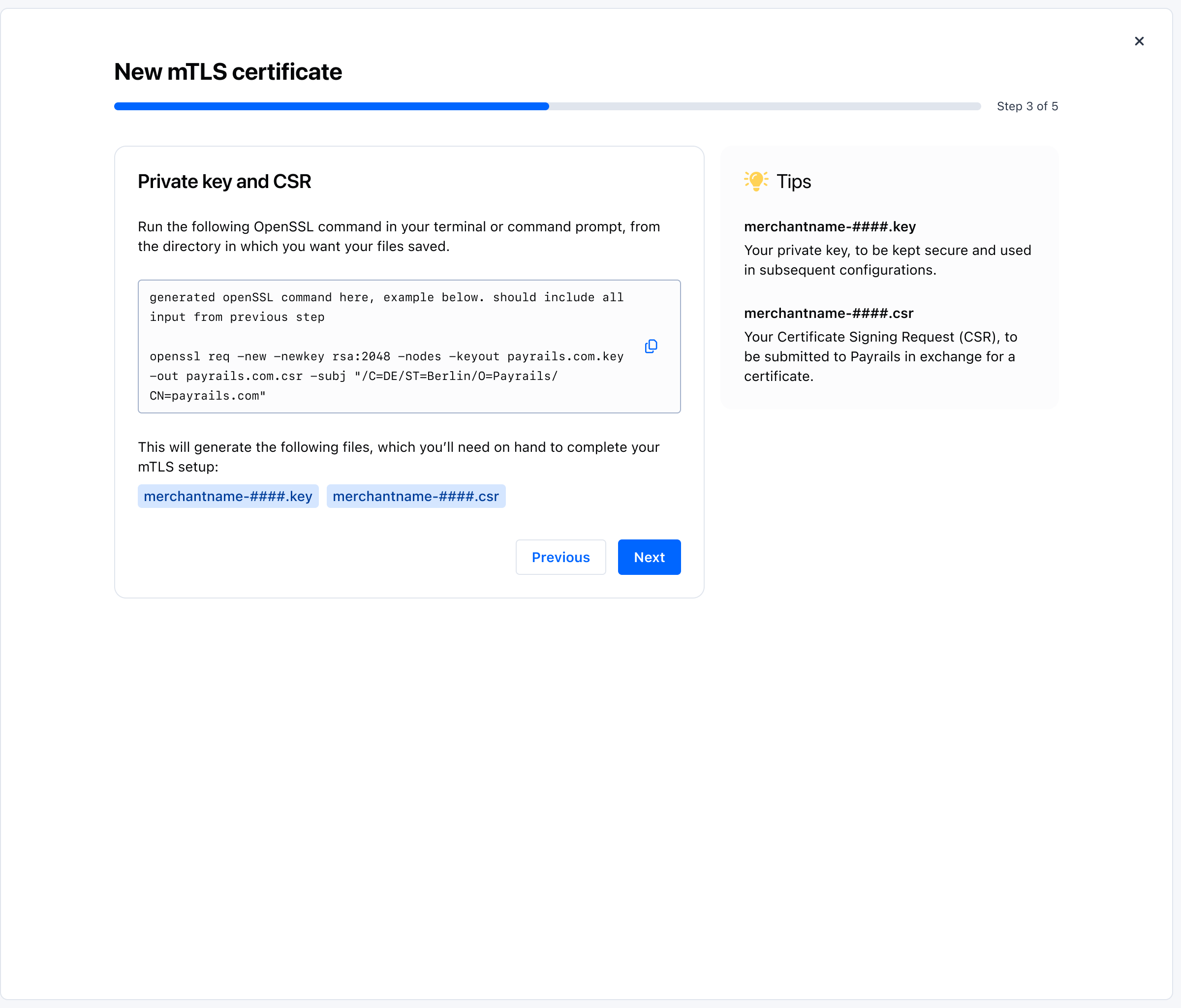

  4. Generate your private key and CSR:

    • The interface displays a pre‑filled OpenSSL command. Copy it and run it in your terminal from the directory where you want the files saved.
    • The command creates two files: a private key and a Certificate Signing Request (CSR).
    • Store the private key securely; you will use it when configuring your client later.
    • Keep the CSR file ready for submission in the next step.

  5. Submit the CSR generated in step 4.

  6. The certificate is issued automatically after submission: click Download to download it.

  7. Install the certificate in your service or keep it ready for local testing (see the Postman section below).

  8. Click on Continue to configuration to test and configure your mTLS certificate.

Validate and test

Test and configure your mTLS certificate

You can test your mTLS certificate with cURL or Postman, follow the instructions on the screen.

Configure curl to use mTLS

The exact command to use mTLS with CLI depends on the tool you're using. Here's an example with curl to retrieve an access token from Payrails API:

curl --cert domain.pem --key domain.key \
  --location --request POST 'https://<payrails-api-endpoint-url>/auth/token/<Client ID>' \
  --header 'Accept: application/json' \
  --header 'x-api-key: <Client Secret>'
  • domain.pem: the certificate file downloaded (or sent to you) in Step 2,
  • domain.key: the private key file generated in Step 1,
    • If the private key requires a passphrase, you will also need to provide it with --pass argument.
  • Client ID and Client Secret are the API credentials. See how to retrieve them.

Configure Postman to use mTLS

From certificate details

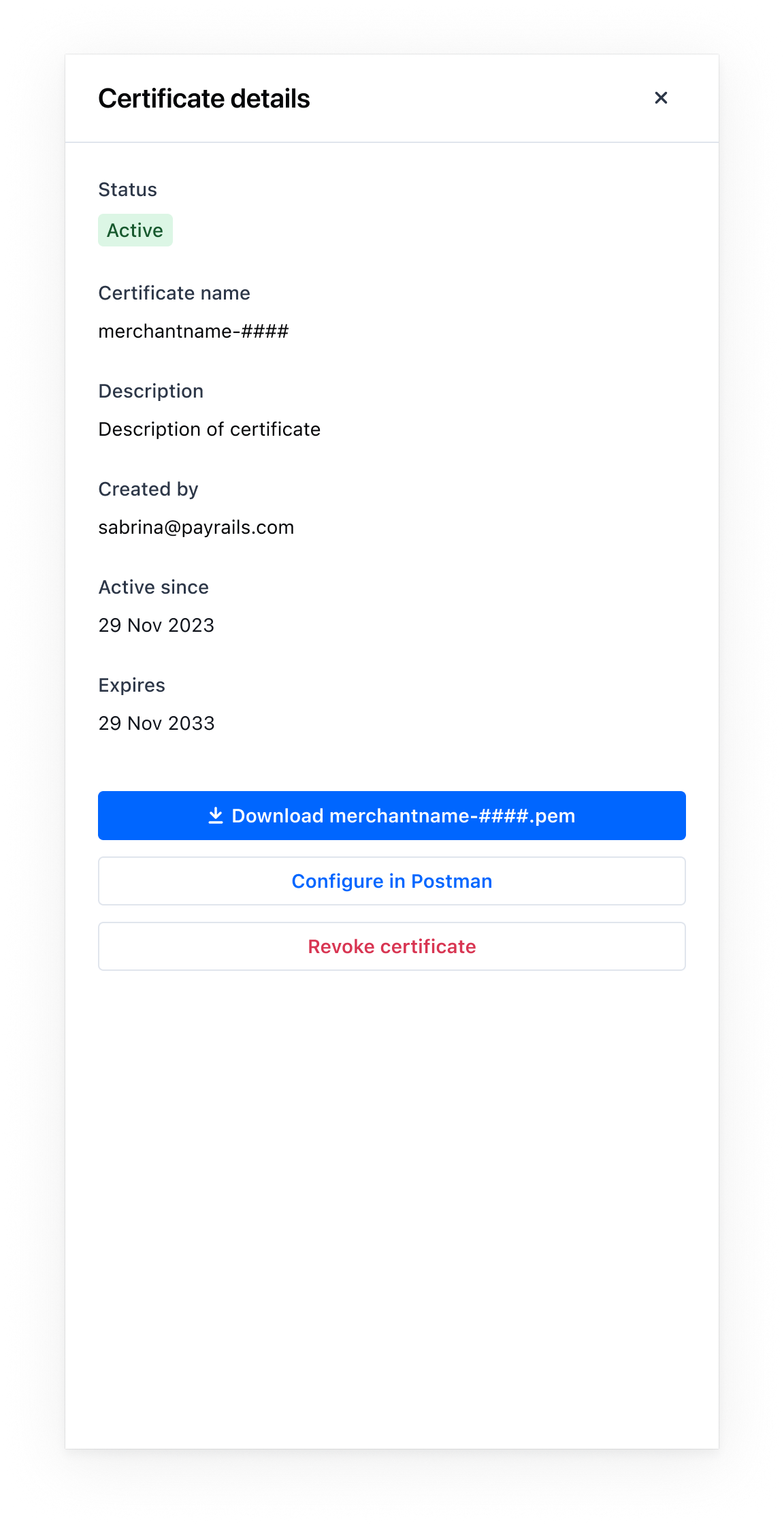

  1. Open the certificate from the list to view Certificate details.
  2. Select Download <certificate>.pem and save the file.
  3. Select Configure in Postman to open the guided steps.

Step 1 of 3 — Test with cURL (optional)

  • Copy the cURL command shown in the interface and run it in your terminal from the directory where your <merchant>-####.key and <merchant>-####.pem are saved.
  • Replace placeholders with a valid Client ID and Client Secret from your API credentials.
  • On success, the response includes an access token. If it fails, verify the credentials and that both the key and certificate paths are correct.

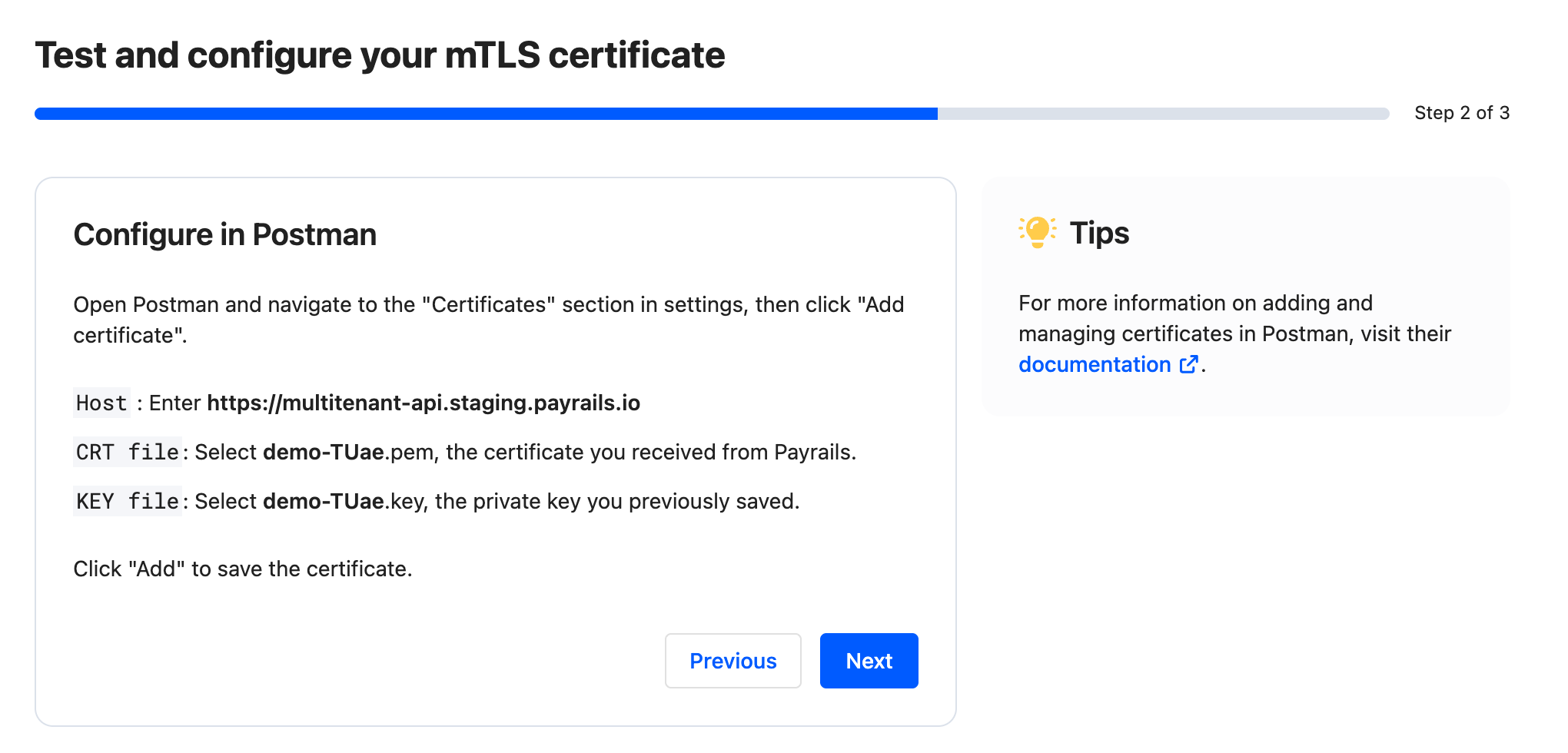

Step 2 of 3 — Configure in Postman

  1. Open Postman and go to Settings → Certificates, then select Add certificate.
  2. Host: enter the host value shown in the interface for your environment.
  3. CRT file: select the downloaded <merchant>-####.pem certificate from Payrails.
  4. KEY file: select the previously saved <merchant>-####.key private key you generated during the CSR step.
  5. Select Add to save the certificate mapping.

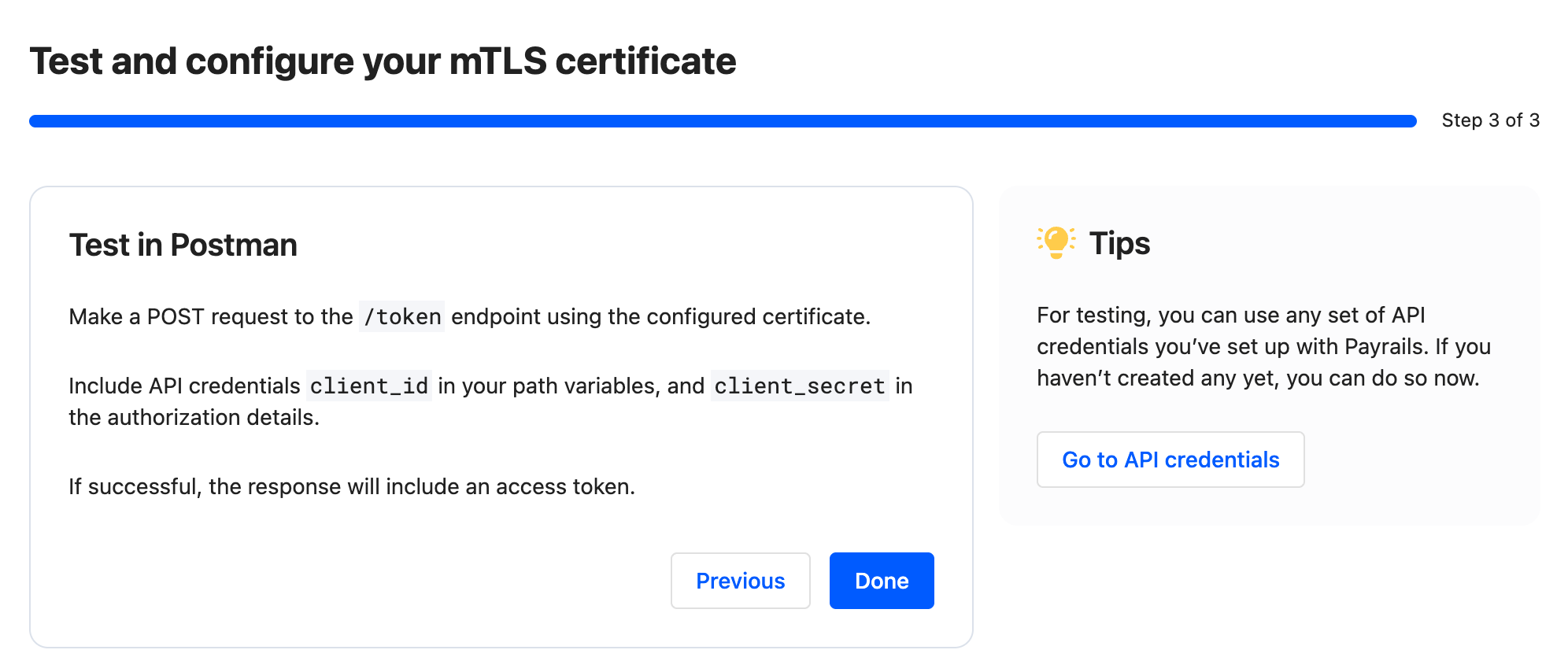

Step 3 of 3 — Test in Postman

  1. Create a POST request to the endpoint indicated in the interface (for example, /token).
  2. Include your API credentials as instructed on screen (for example, client_id in path variables and client_secret in authorization details).
  3. Send the request. A successful TLS handshake and authorization returns an access token.

Troubleshooting

  • Handshake failed in Postman:

    • Verify the host and port match the values shown in the interface.
    • Ensure the client certificate is attached to that host entry and imported correctly.
    • If a passphrase was shown at download time, confirm it is entered correctly.

  • 401/403 after handshake: OAuth or API authorization failed. Acquire a valid access token and ensure the calling client has required permissions.

  • Revoked certificate: issuance of a new certificate is required; revoked certificates cannot be re‑enabled.

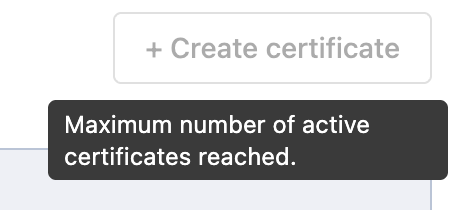

  • Maximum number of active certificates reached: we limit the number of certificates to prevent abuse. If you reached your limit, either revoke an existing certificate that is no longer in use or contact your Payrails administrator to increase your limit.
